- The following program prints the following information about
*U(n)*( The set of all positive integers less than*n*and relatively prime to*n.*Two integers are relatively prime if their greatest common divisor is 1. ): - a. The elements of
*U(n).* - b. The inverse of each member of
*U(n).*( Please go ahead and try it!! ) - (
**Instructions:**Click your mouse on the text-field(the rectangle on top), enter an integer and press return. Scrollbars are more efficient if you place your mouse on them and move. ) `public void draw( Graphics g, integer W, integer H,``integer X, integer Y );.`- Once the user enters a value in the text field, it is read using
*Integer.parseInt.*Exceptions, if there are any, are handled and the value is passed to the relevant method in the application applet. - Inside the method calculations are performed and
*entity*s are built one at a time. That is, an*answer*is built line by line. Once the method fills a line( which is an*algebra.entity )*it invokes the*paint()*method of*misc.ScrollableCanvas*which appends the entity to the current*answer.*This process goes on till the end of the solution. - Once the calculations are done the
*newanswer()*method of*misc.ScrollableCanvas*is invoked, which increments the*answer*count by one and invokes the paint method of*Mycanvas*which is a sub-class of*java.awt.Canvas*and defined inside*misc.ScrollableCanvas*. - Inside the
*paint ()*method of*Mycanvas, answers*( various trials ) are read one by one. With each*answer*'s*get_line()*method the*entities( sentence or table )*are retrieved and instantiated as an*algebra.Drawable.*Since*Drawable*defines a`draw()`method, which is given above, and since each of the*Words*know how to draw themselves, the*answer*'s are painted on the canvas. The key is that the Graphics object of the*paint()*method in*Mycanvas*is passed by reference to the*Words*and hence the painting is achieved by invoking the`draw()`method in each*Word(s).*

The software supplement to the book Contemporary Abstract Algebra, 5th edition, 2002, Houghton Mifflin by Joseph A. Gallian was begun by Arvind Rajagopal in 1997 for his M.S. project. Over the years the software supplement was improved and expanded by Xiong Wang, Kai Xu and Dong Liang.

The computer exercises are meant to allow students to produce data,explore
examples, and make and test conjectures.

**
**

A typical program( Applet ) looks like this.....

I have used a "Text Field" to accept values from the users and a "Scrollable Canvas" to display the solutions. I have also provided a "clear button" to refresh the canvas. I plan to provide a "print button" to print the contents of the canvas, later.

Having seen how a typical Applet works let me take you into the design of
the whole program. All the programming exercises use two packages that I built
called *algebra* and *misc*(
has miscellaneous items like Scrollable Canvas, Text Field, and other Utilitiy
functions ). Typically, each trial is considered as an *algebra*.*answer**
*and *algebra*.*answer*s are made of either a *algebra.sentence
*or a *algebra.table. *Both *algebra.sentence
*and *algebra.table *are subclasses of the abstract class *algebra.entity
*and implement an interface *algebra.Drawable
*that enables them to draw themselves on the canvas.

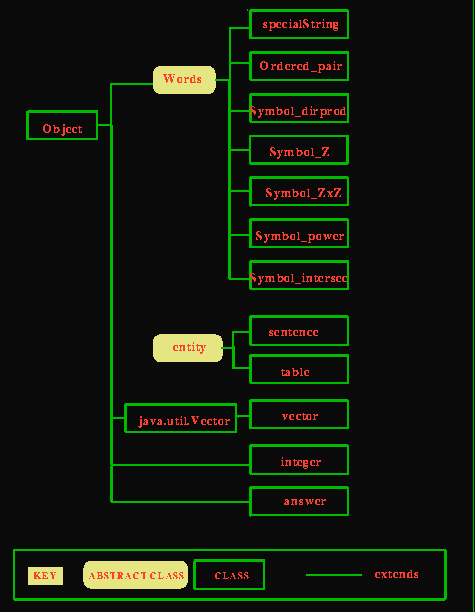

Here's the diagramatic representation of the *algebra
*package:

All subclasses of *algebra.Words *and
*algebra.entity *implement the interfaces *algebra.Drawable *and
*Cloneable. *Also the interface *Drawable* is a part of the package
*algebra*.

Both *algebra.sentence *and *algebra.table *are composed of *algebra.Words.
*As you can see, there are seven kinds of *Words*. All subclasses
of *algebra.Words *implement the *algebra.Drawable *interface
and hence can draw themselves.

The *algebra.Drawable *interface has just one method `draw()`
which is defined as follows:

Where 'g' is a 'Graphics' object while W, H, X, and Y, which stand for
the width, height, x-coordinate and y-coordinate respectively, are of the
type *algebra.integer *which is just a wrapper to an 'int' with some
extra functionalities.

If we call the individual problems( programming exercises ) as 'application applets', here's how the application applets work.

*Please take a look at the packages algebra
and misc.*

**
**

*algebra Package
*/ *misc Package* / Project
