EE 2212

PROBLEM SET 6

S. G. Burns

Due: Wednesday, 17 November

NOTE 1: Table 5.2 on Page 228 is a very important reference for Problems 1, 2, and 3.

NOTE 2: You will find the loop equation V_CE=V_CB + V_BE very important in working on Problems 1, 2, and 3

1. Text 5.36 for an npn and Text 5.40 for a pnp. Include sketches of the bias voltages that are applied to each BJT terminal. This is good practice in using double-subscript notation.

2. This problem is an expanded version of Text 5.36. Complete the following table. To support each of your table entries, draw and label a symbol of the npn transistor and illustrate the junction bias conditions by showing the two diodes with the appropriate bias conditions. Your Region of Operation will be either forward-active, reverse-active, cutoff, or saturation. Observe that the definition for saturation in a BJT is entirely different than the definition for (“current”) saturation in a FET!!!

For an npn BJT

VBE (in volts)	VCE (in volts)	BE Junction Bias (Forward or Reverse)	CB Junction Bias (Forward or Reverse)	Region Of Operation
+0.7	+5
-5	+5
-0.7	+5

3. This problem is an expanded version of Text 5.40. Complete the following table. To support each of your table entries, draw and label a symbol of the pnp transistor and illustrate the junction bias conditions by showing the two diodes with the appropriate bias conditions. Your Region of Operation will be either forward-active, reverse-active, cutoff, or saturation. Observe that the definition for saturation in a BJT is entirely different than the definition for saturation in a FET!!!

For a pnp BJT

VBE (in volts)	VCE (in volts)	BE Junction Bias (Forward or Reverse)	CB Junction Bias (Forward or Reverse)	Region Of Operation
+0.7	-5
-0.7	-5
-0.7	+5

4. Draw and label the small-signal model for Figure P13.11 on page 830. Using your small-signal model, and by inspection of the resultant circuit topology, estimate the voltage gain, a_v = v_O/v_I. Observe the use of two dc supplies (independent ideal voltage sources)!

5. Draw and label the small-signal model for Figure P13.7 on page 830. Using your small-signal model, derive an expression for the voltage gain, a_v = v_O/v_I in terms of the circuit elements and model elements. No numerical calculations! Observe that this is a pnp BJT which makes no difference when working with the small-signal model. Compare your results with Problem 4.

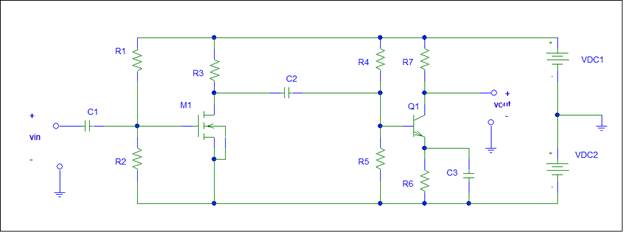

6.      Small-Signal Analysis From An Old Quiz

          Assume that for the BJT, VA is finite and for the MOSFET, l is non-zero.  Assume the capacitors are considered large at the frequency of   interest.

(a)   Sketch and label the small-signal model for this circuit.

(b)   Derive the voltage gain, av = vout/vin. Note that g_m is DIFFERENT for a BJT and a MOSFET.
